Select Equipment

How to select equipment to dispense to from a fuellox device

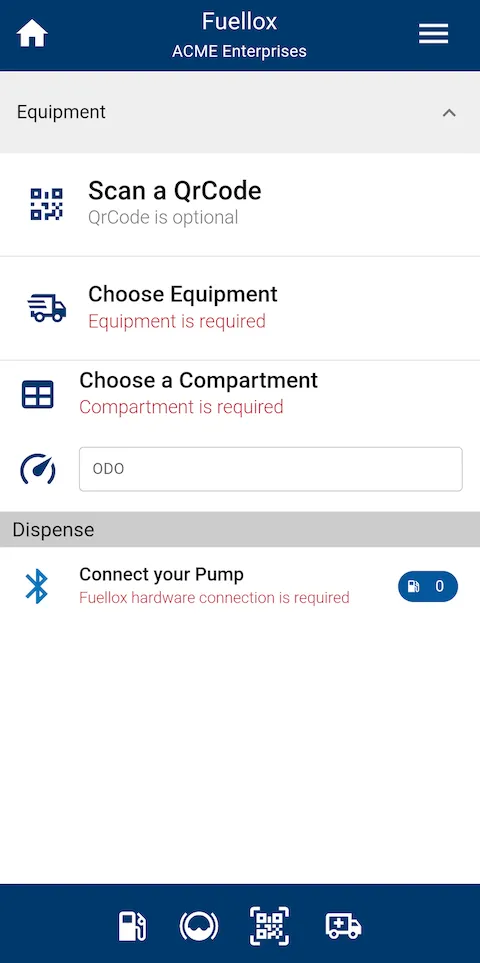

• First you will need to navigate to the dspense screen

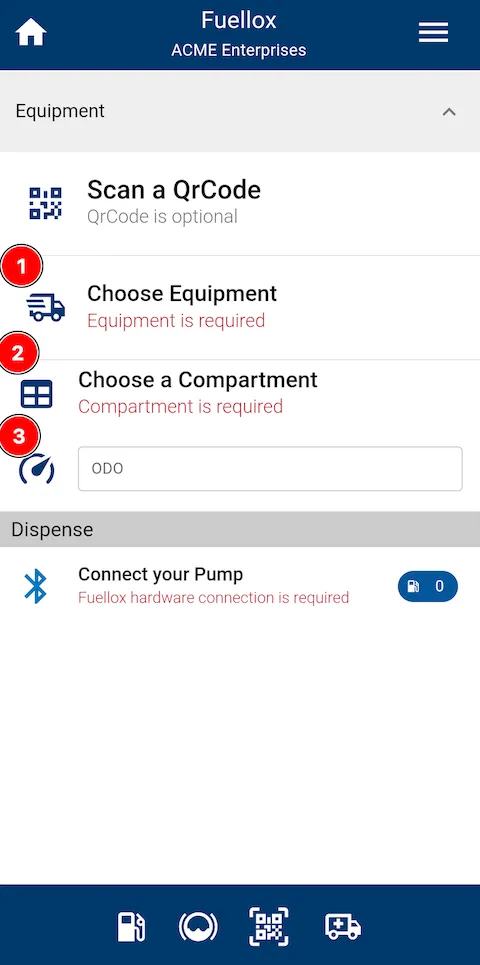

• To start there are 2 ways to go about selecting equipment


1. Choose Scan a QrCode

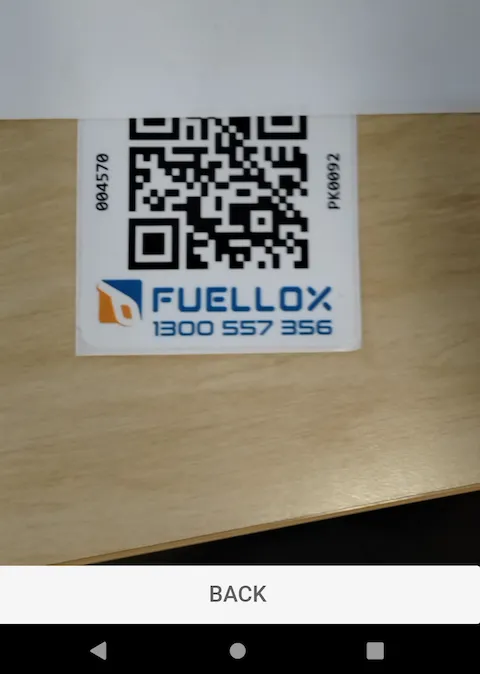

   • Your camera will open (or prompted if permission is required)

   • After scanning a fuellox QrCode, the equipment, compartment and fluid will be selected for you

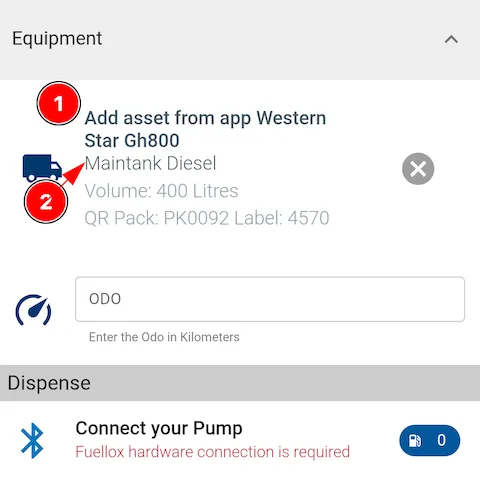

     • Here we can see the (1) Equipment is selected for us and the (2) Compartment, as well as fluid

     • This is ideal because it prevents incorrect fluids from entering tanks
2. Choose Equipment

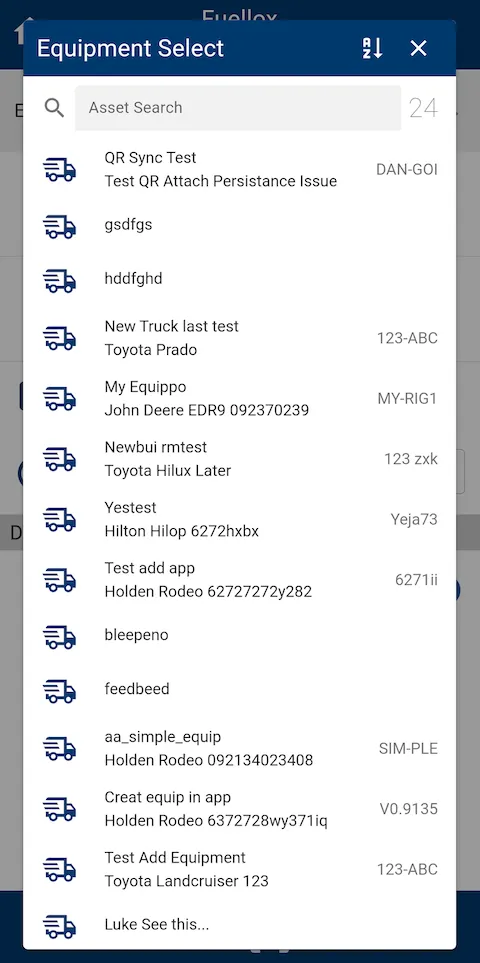

   • Prompted with equipment available for selection

     • Here you can search, sort, and select the equipment you would like to fill


   • After choosing one,

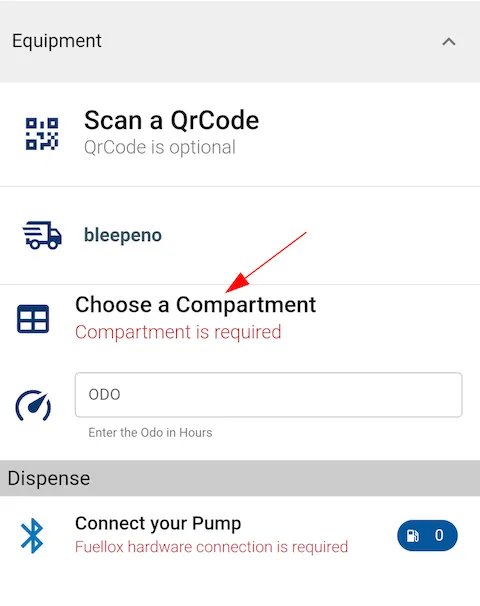

     • If it has more than one compartment you will be required to select which compartment you intend to fill

     • After clicking ‘Choose a Compartment’, you will need to select one from the list
       • You can see the respective fluid here

       • After selecting a compartment, you will see the compartment listed under the equipment

     • If it only has one compartment it will be selected for you by default

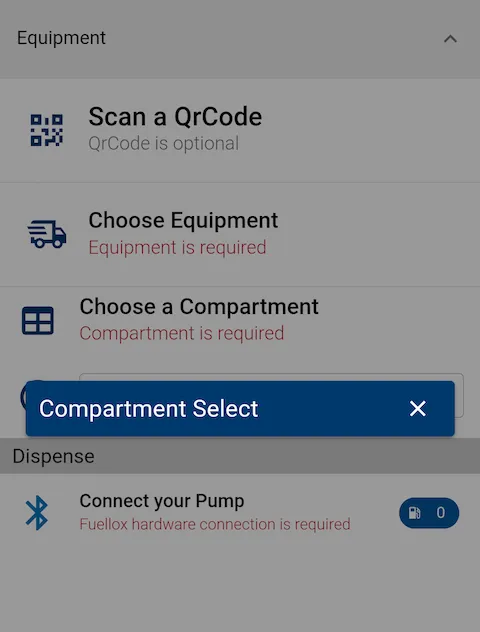

     • If you try to choose a compartment before selecting an equipment, no options will be present


   • Some equipment require current Odometer reading to be entered

   • At this stage the app will know what fluid goes into the respective compartment/fluid and will only show you pumps to connect to that are registered as that fluid
